Key Features & Technical Specifications:
Power & Performance
* Power Output (RMS): 105W + 105W (8 ohms, 20Hz - 20kHz, both channels driven)
* Power Output (6 ohms): 120W + 120W (20Hz - 20kHz, both channels driven)
* Massive Dynamic Power: 190W (6Ω) / 235W (4Ω) / 295W (2Ω) per channel
* Total Harmonic Distortion (THD): 0.004% at rated output (8 ohms)
* Damping Factor: 100 (1 kHz, 8 ohms)
* Frequency Response: 2 Hz to 100 kHz (+0, -3 dB)
Built-In Digital-to-Analog Converter (DAC)
* DAC Type: Premium 18-bit linear twin D/A converter (independent L/R channels)
* Oversampling: 8-times oversampling digital filter
* Digital Inputs: Coaxial and Optical (Toslink)
* Supported Sampling Frequencies: 32 kHz, 44.1 kHz, 48 kHz
* DAC Dynamic Range: 103 dB
Audio Inputs & Signal-to-Noise (S/N) Ratio
* Phono MM: 94 dB S/N ratio
* Phono MC: 75 dB S/N ratio
* CD, Tuner, Line, Tape:
107 dB S/N ratio
Physical Specifications
* Power Requirements: AC 100V, 50/60Hz (Note: Requires a step-down transformer for use outside Japan)
* Power Consumption: 215W
* Dimensions: 435mm (W) x 169mm (H) x 392mm (D)
* Weight: Massive 17 kg (approx. 37.5 lbs) — built like a tank!

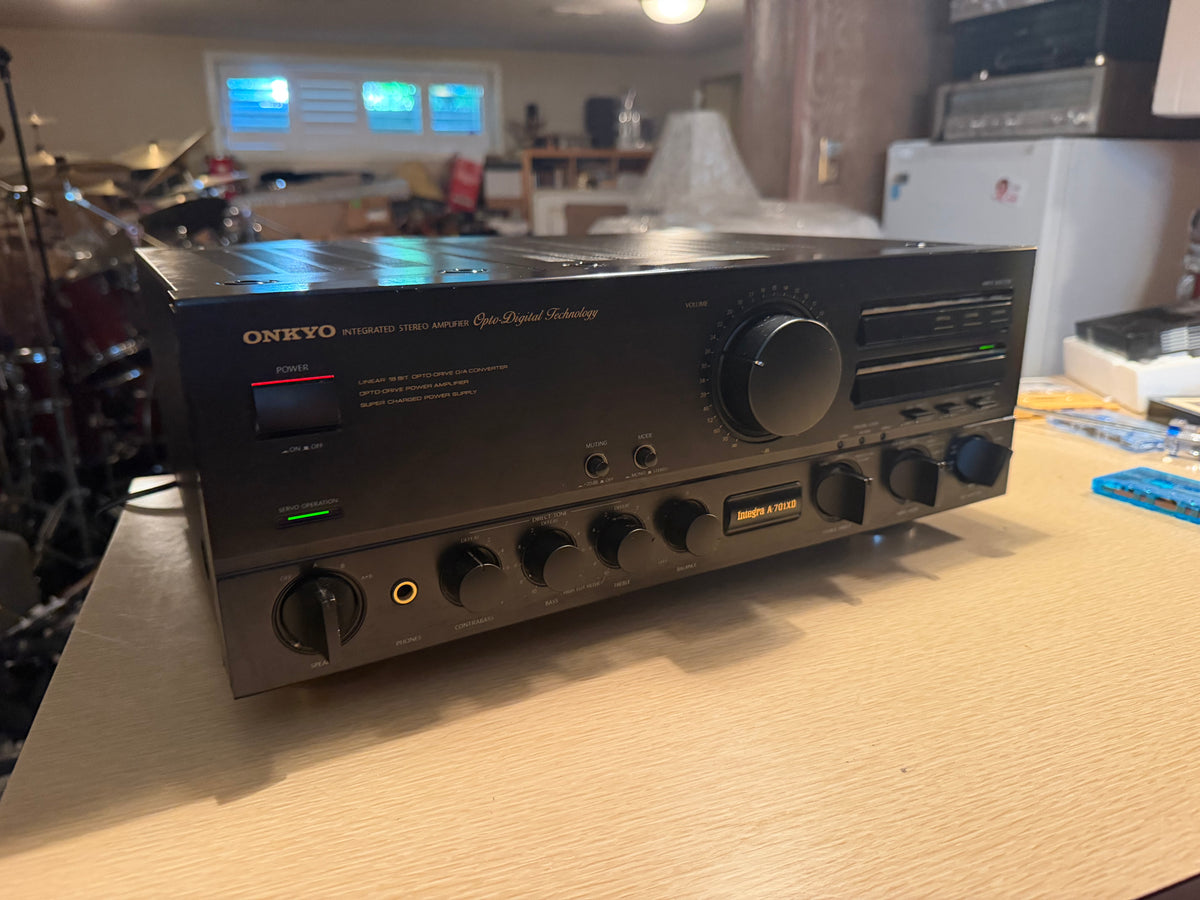

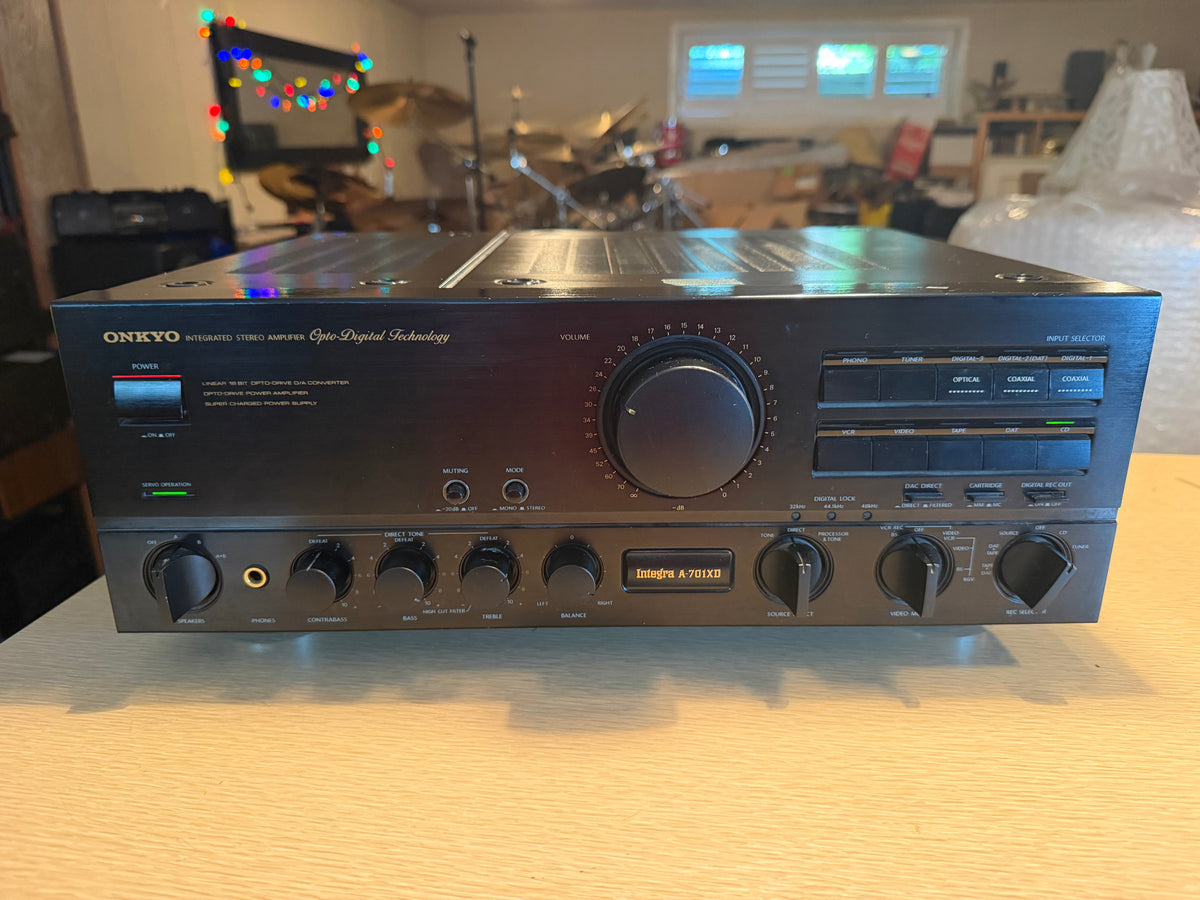

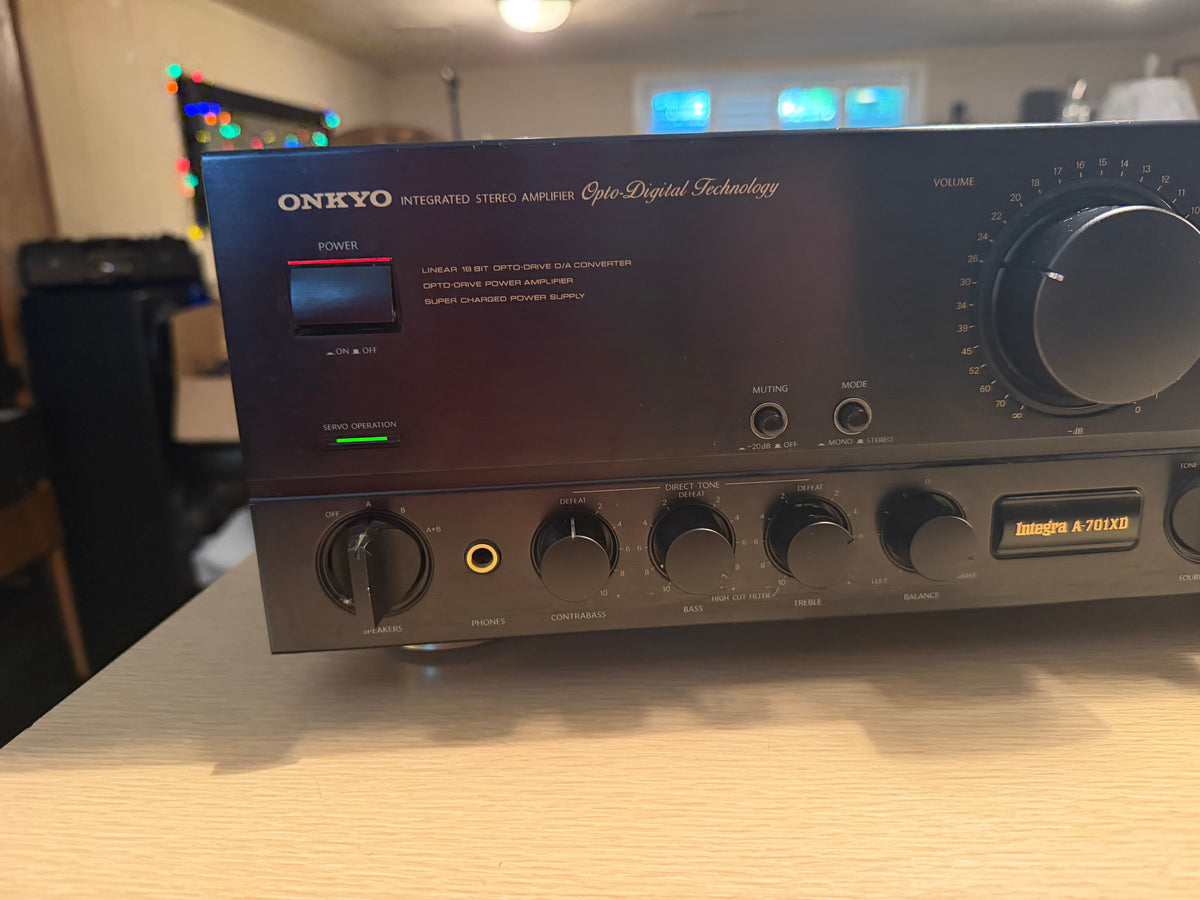

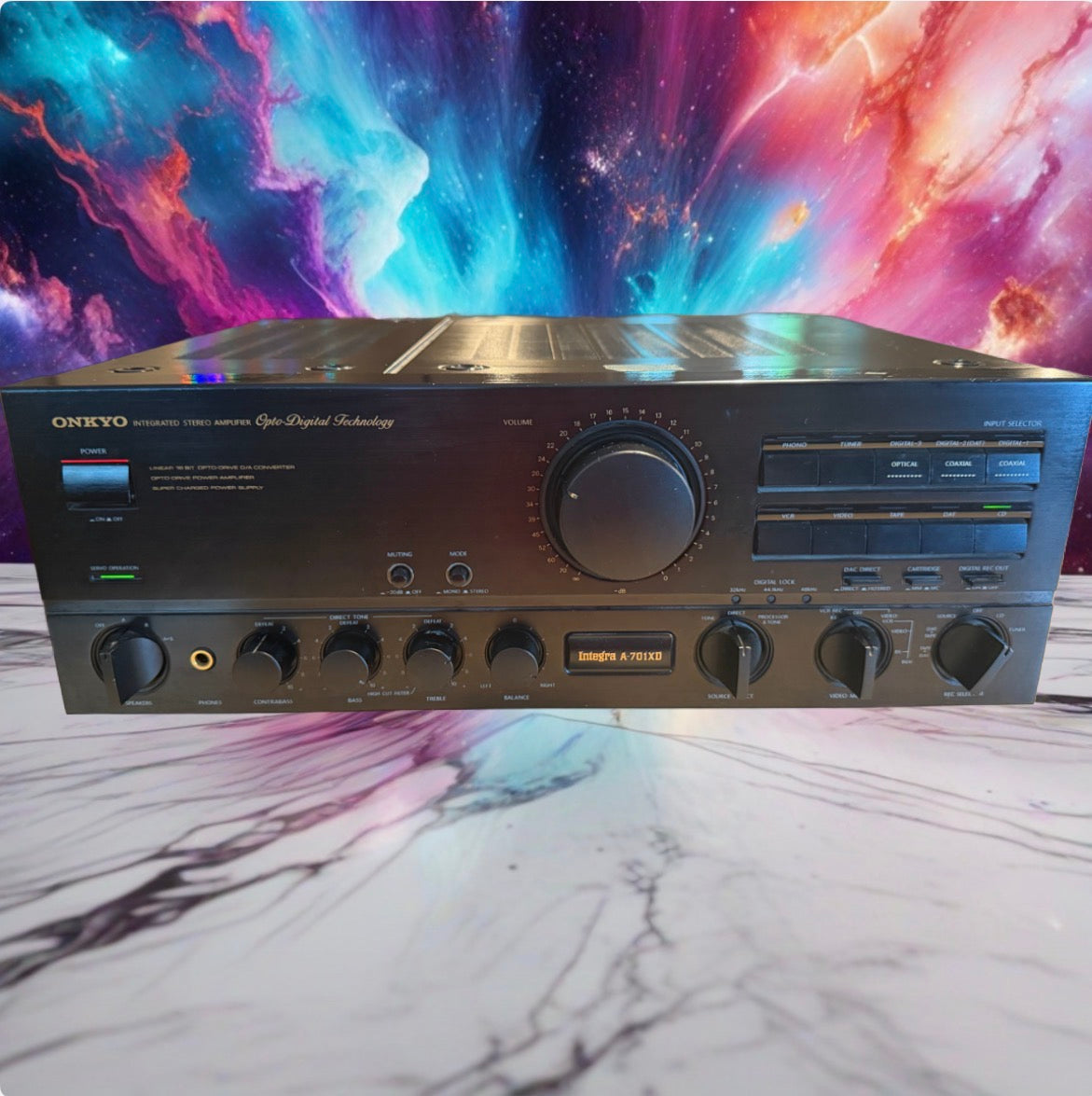

Elevate your audio experience with the Onkyo Integra A-701XD, a rare gem from 1988 that delivers a powerful 105WPC integrated amplifier experience. Crafted in Japan, this black beauty offers a pure analog audio signal path, ensuring a rich and authentic sound that's true to life.

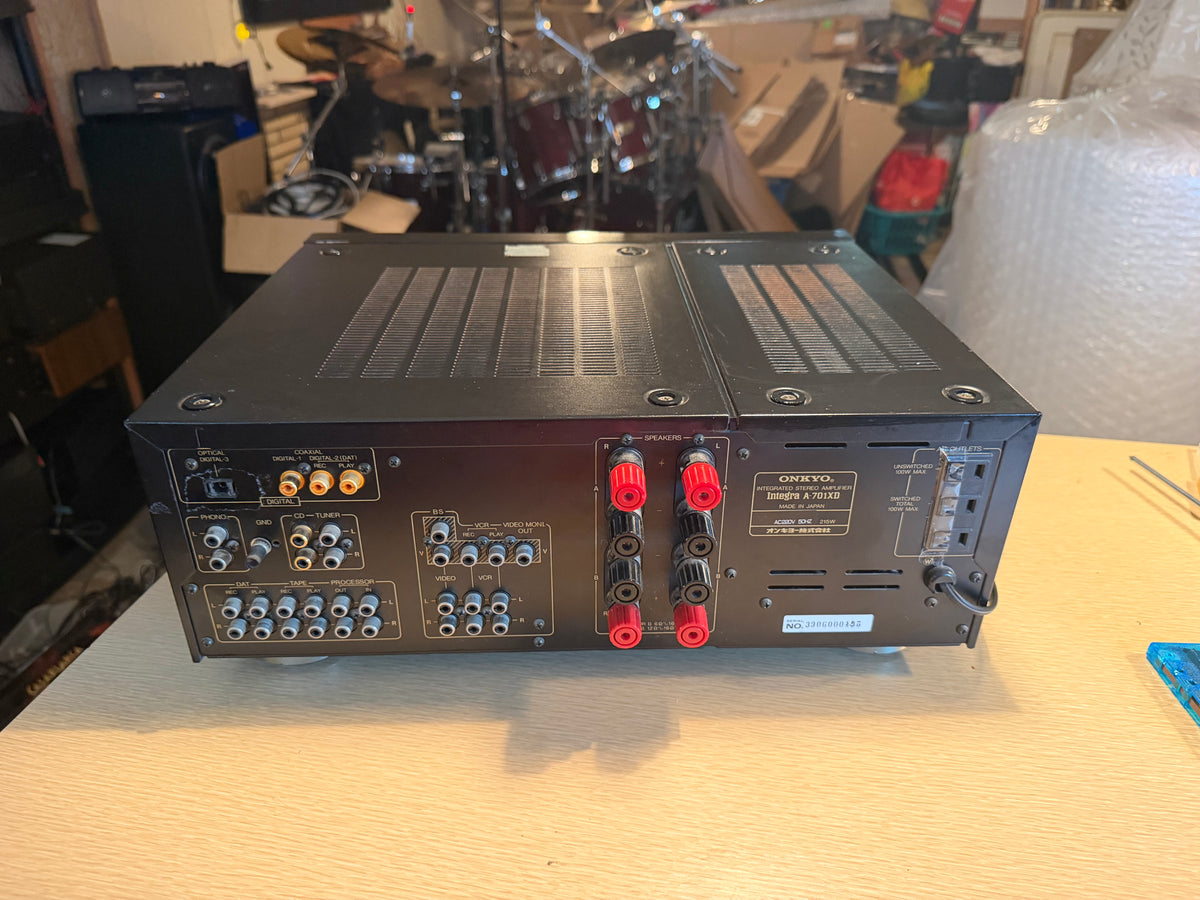

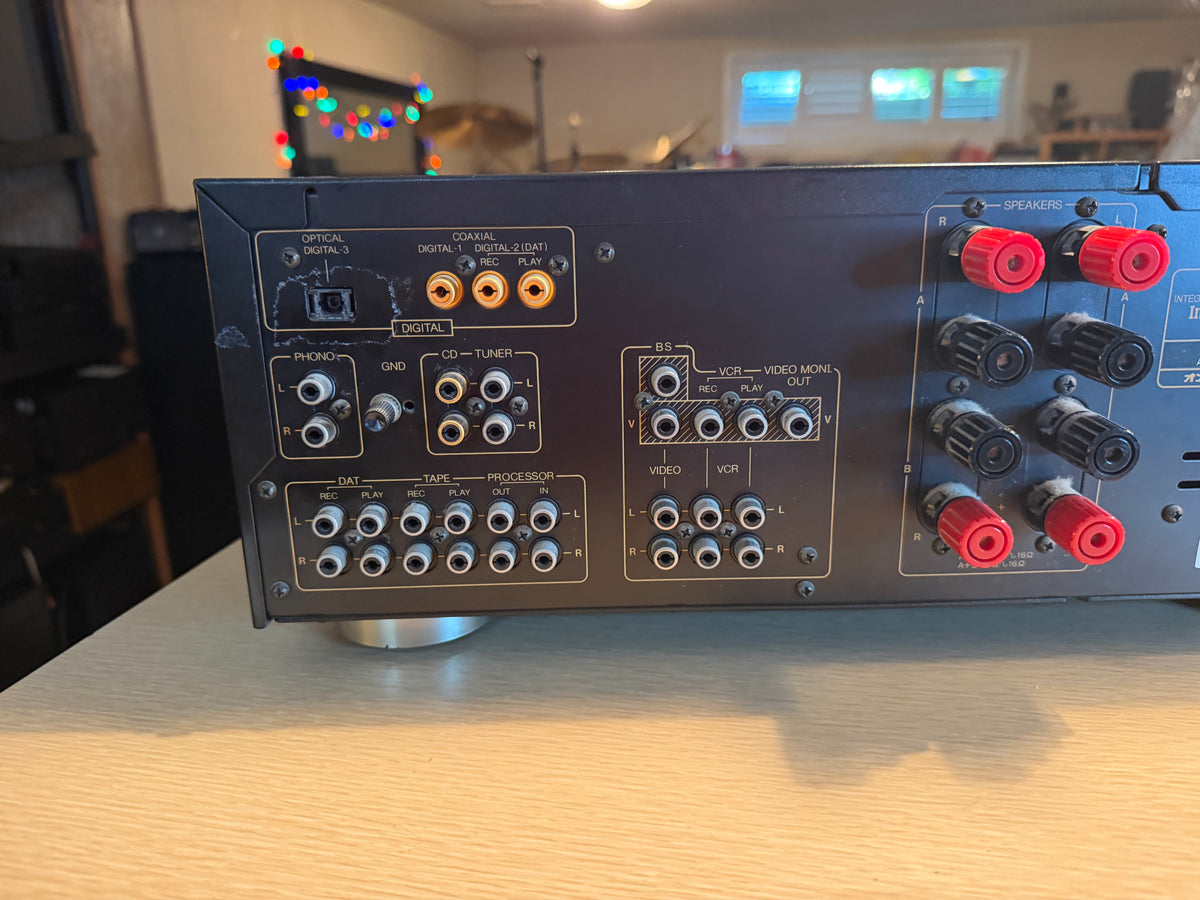

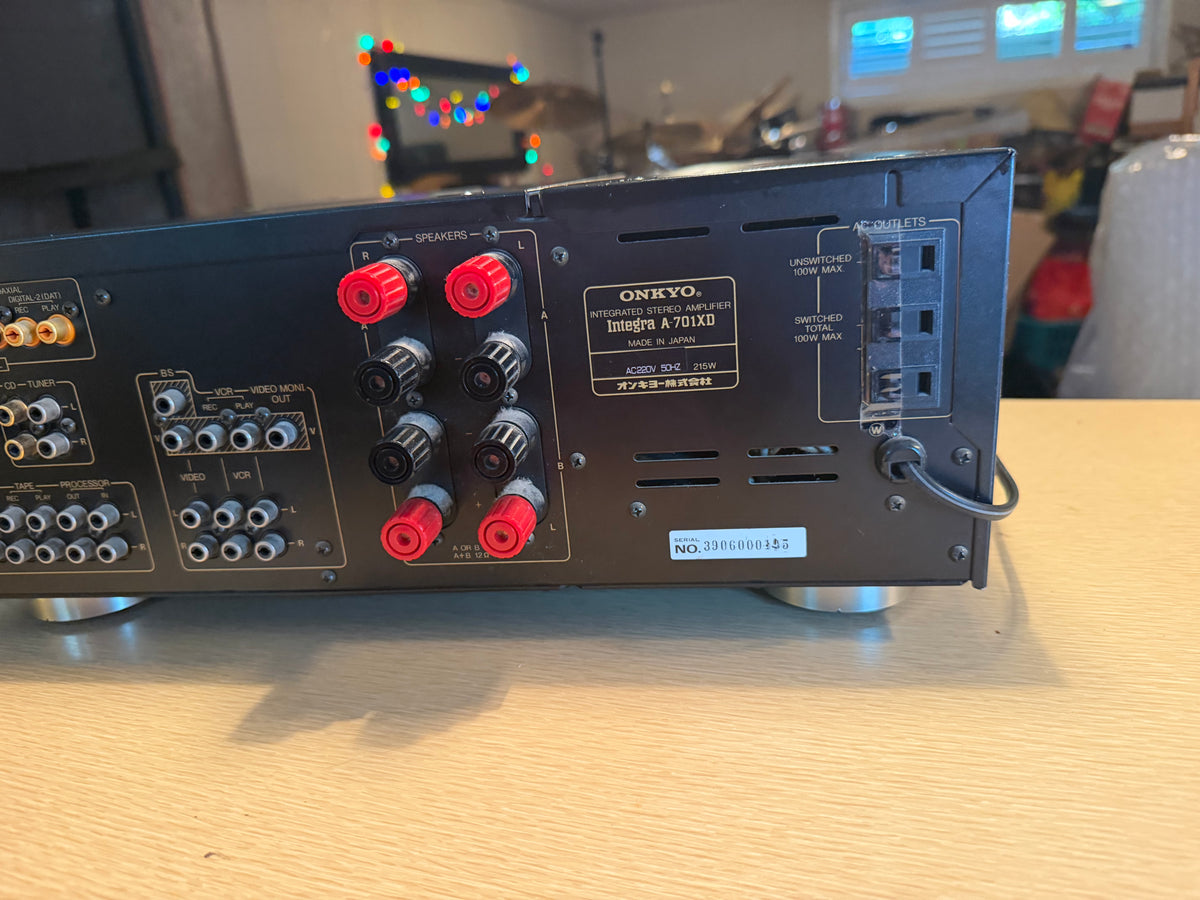

The A-701XD is designed to accommodate a variety of audio sources with its AUX inputs and outputs, and it provides a secure and versatile connection for your speakers via banana speaker jacks. With its robust construction and timeless design, this amplifier is a testament to Onkyo's legacy of quality and performance.
